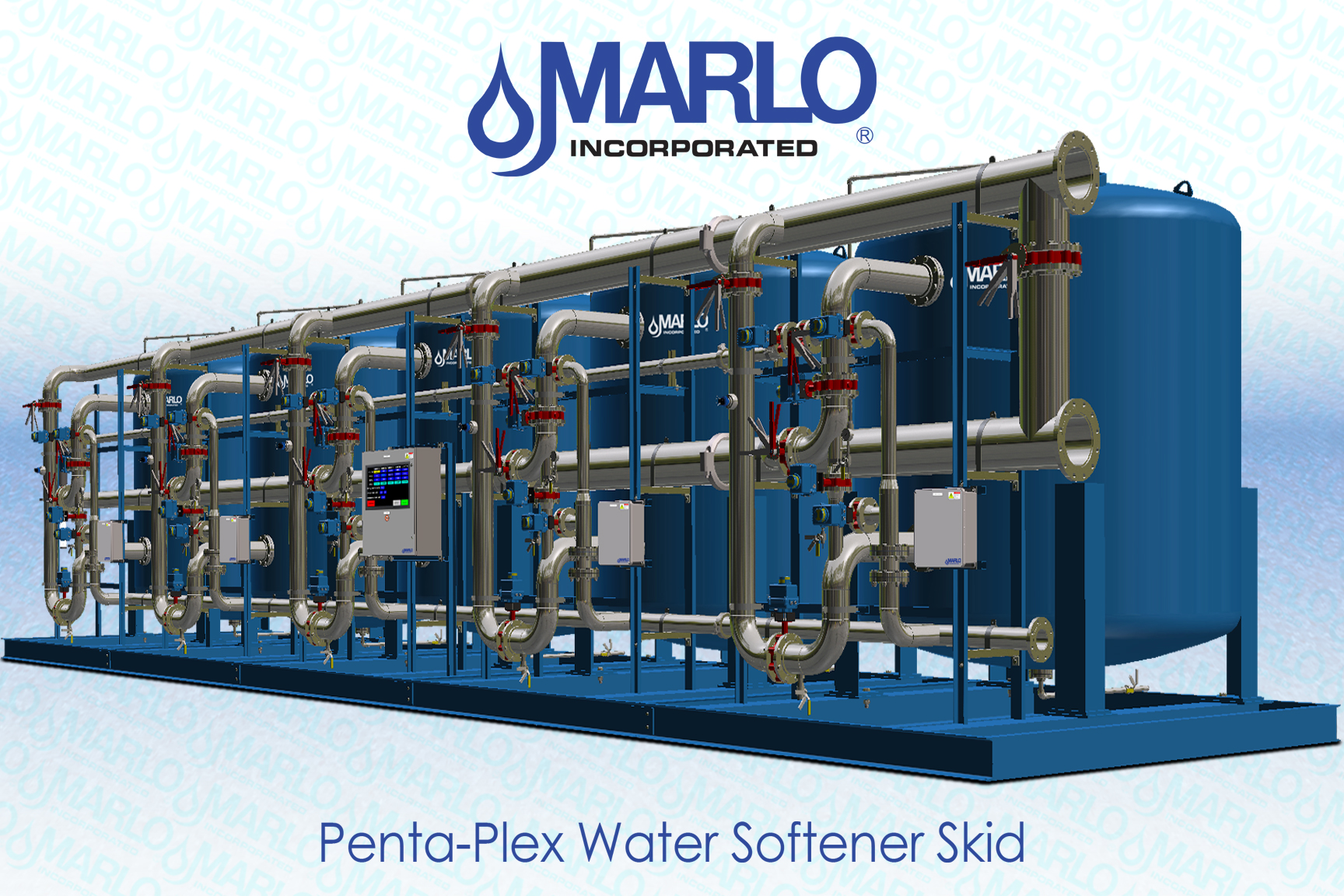

Penta-Plex Water Softener Skid

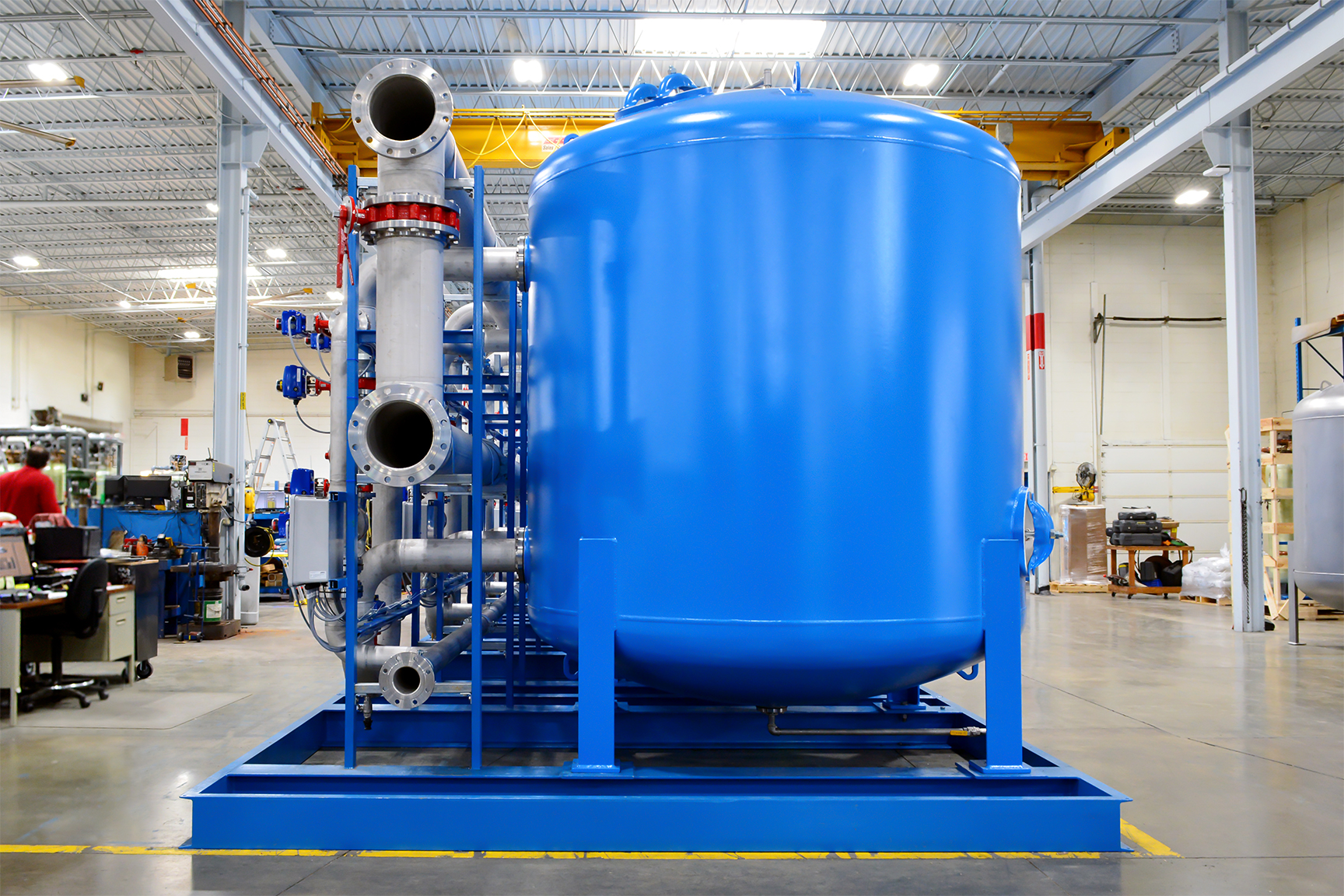

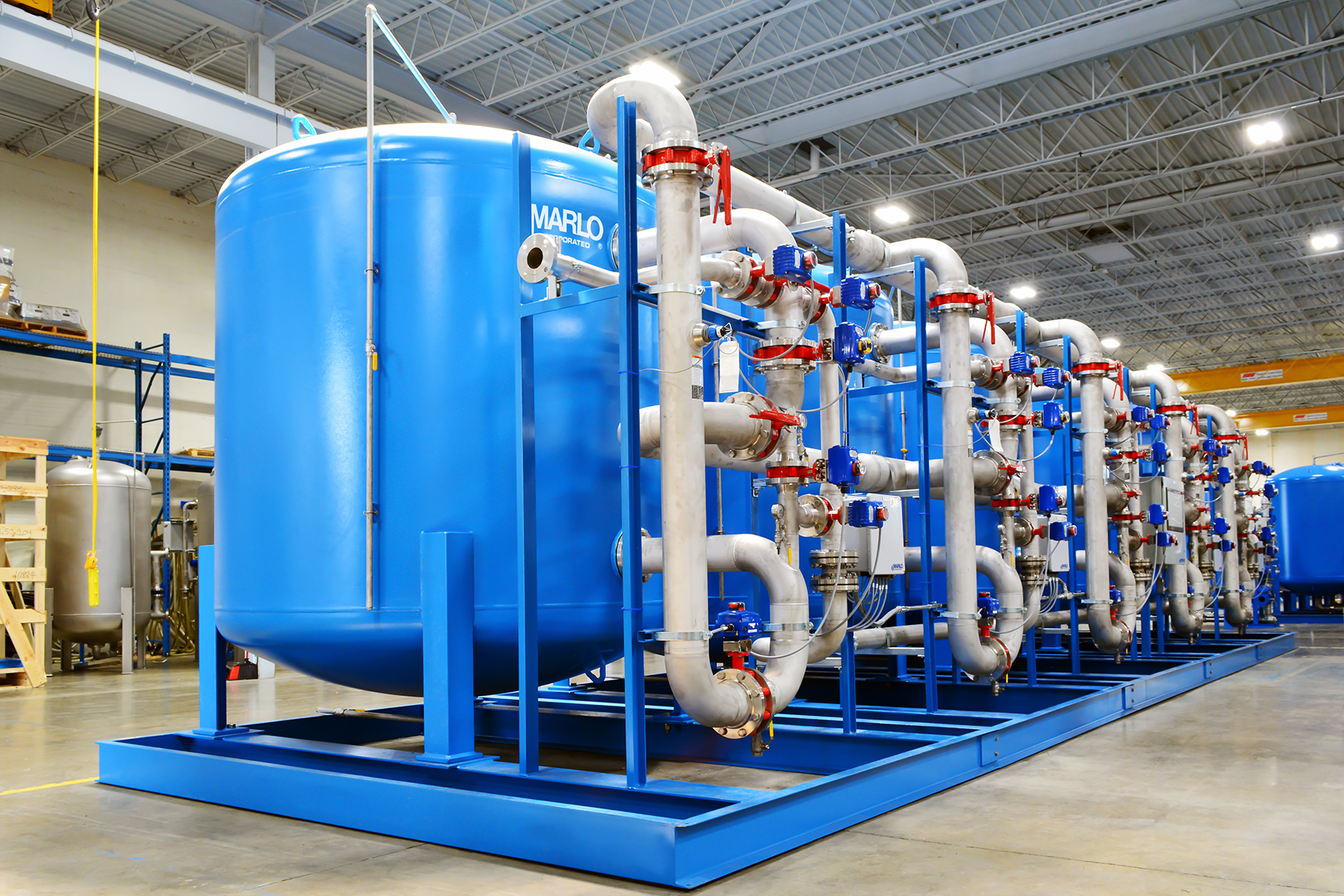

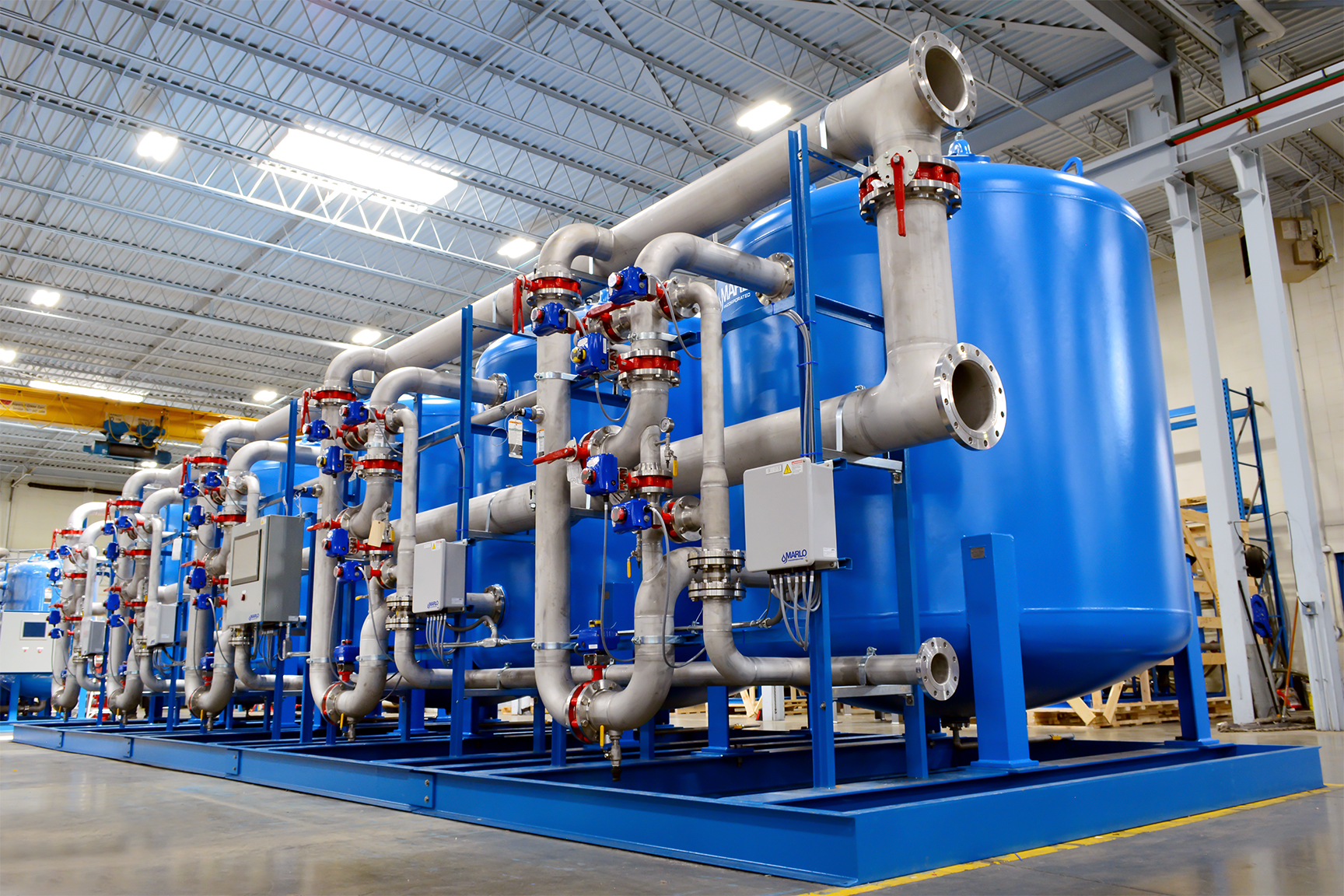

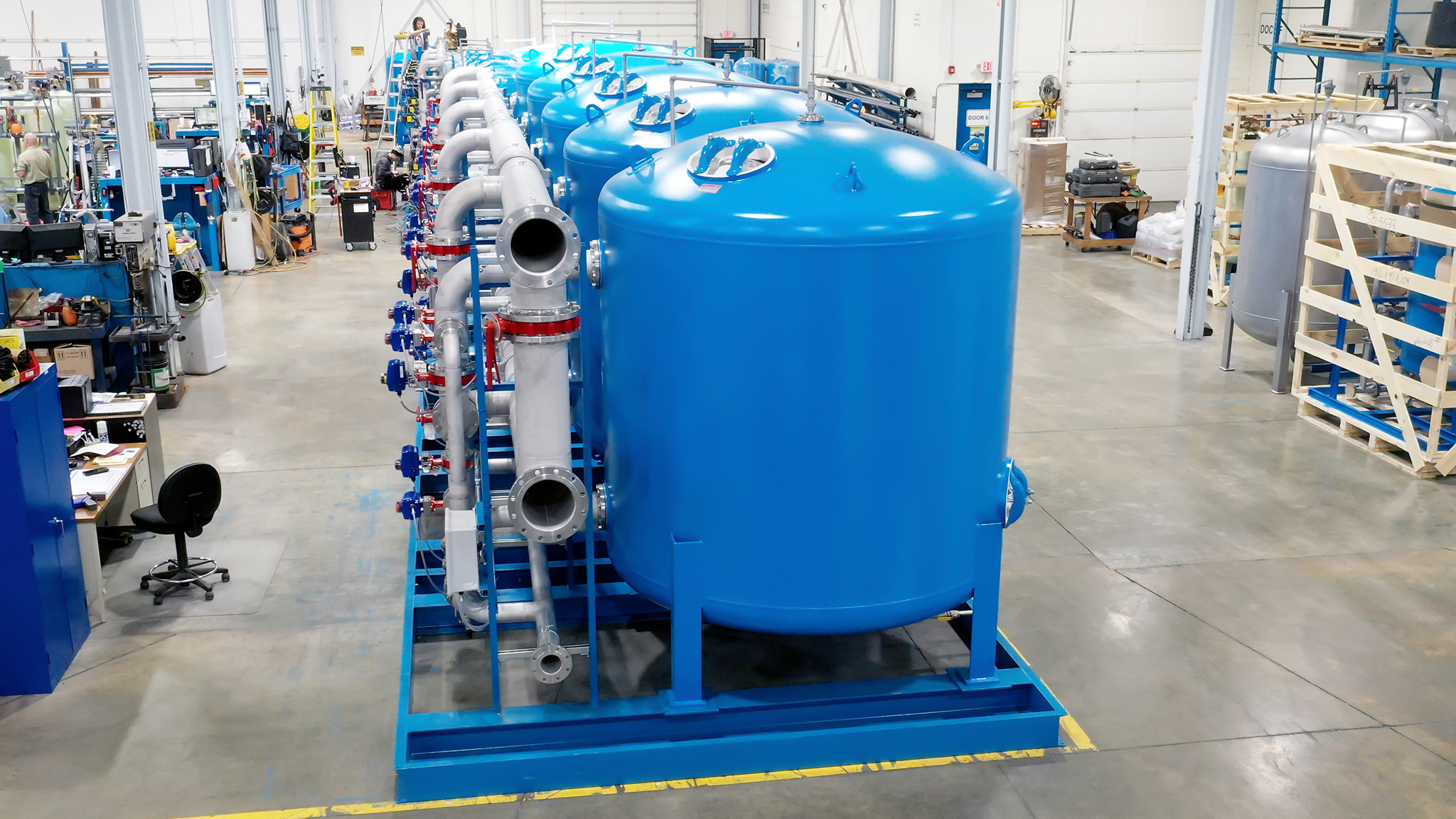

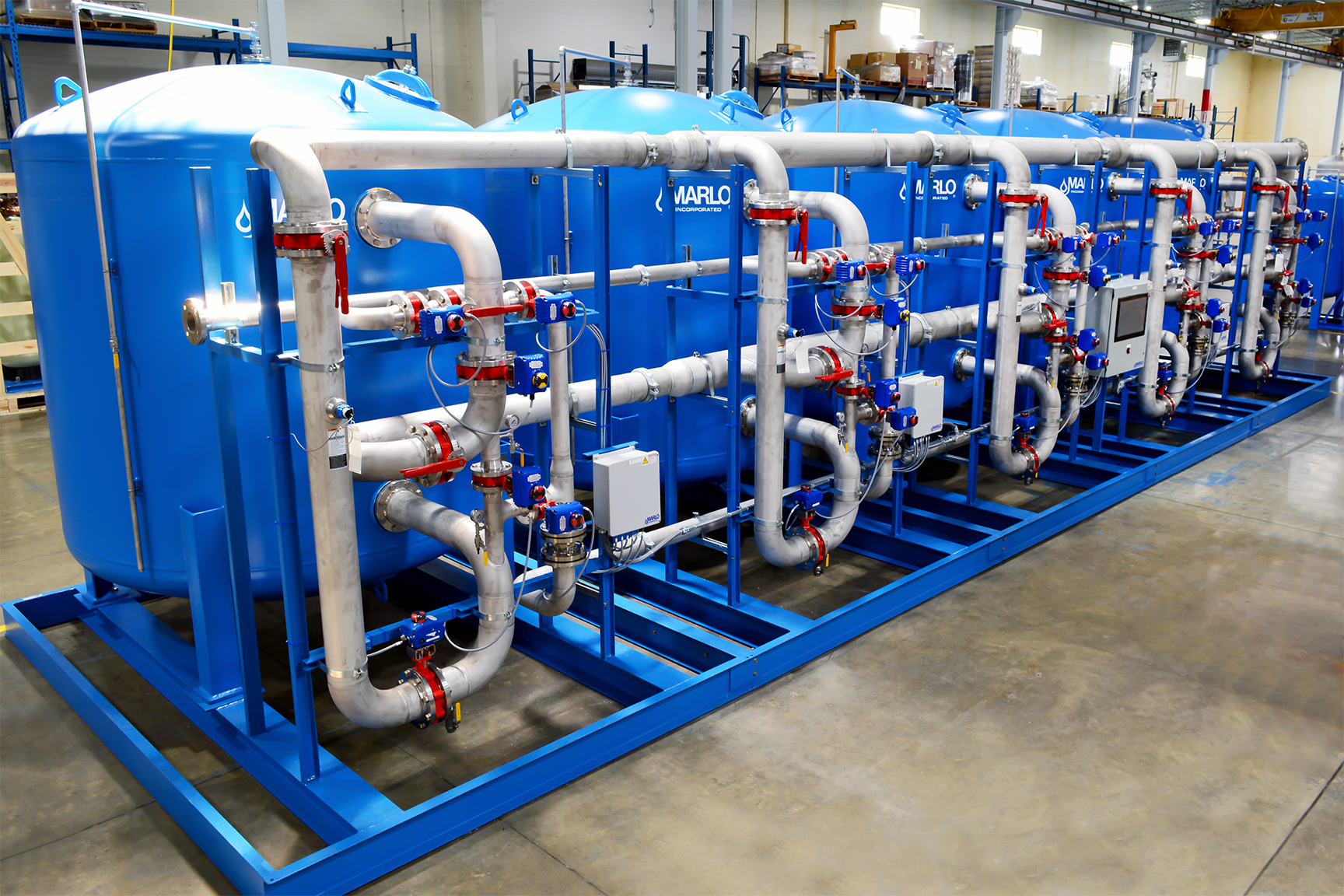

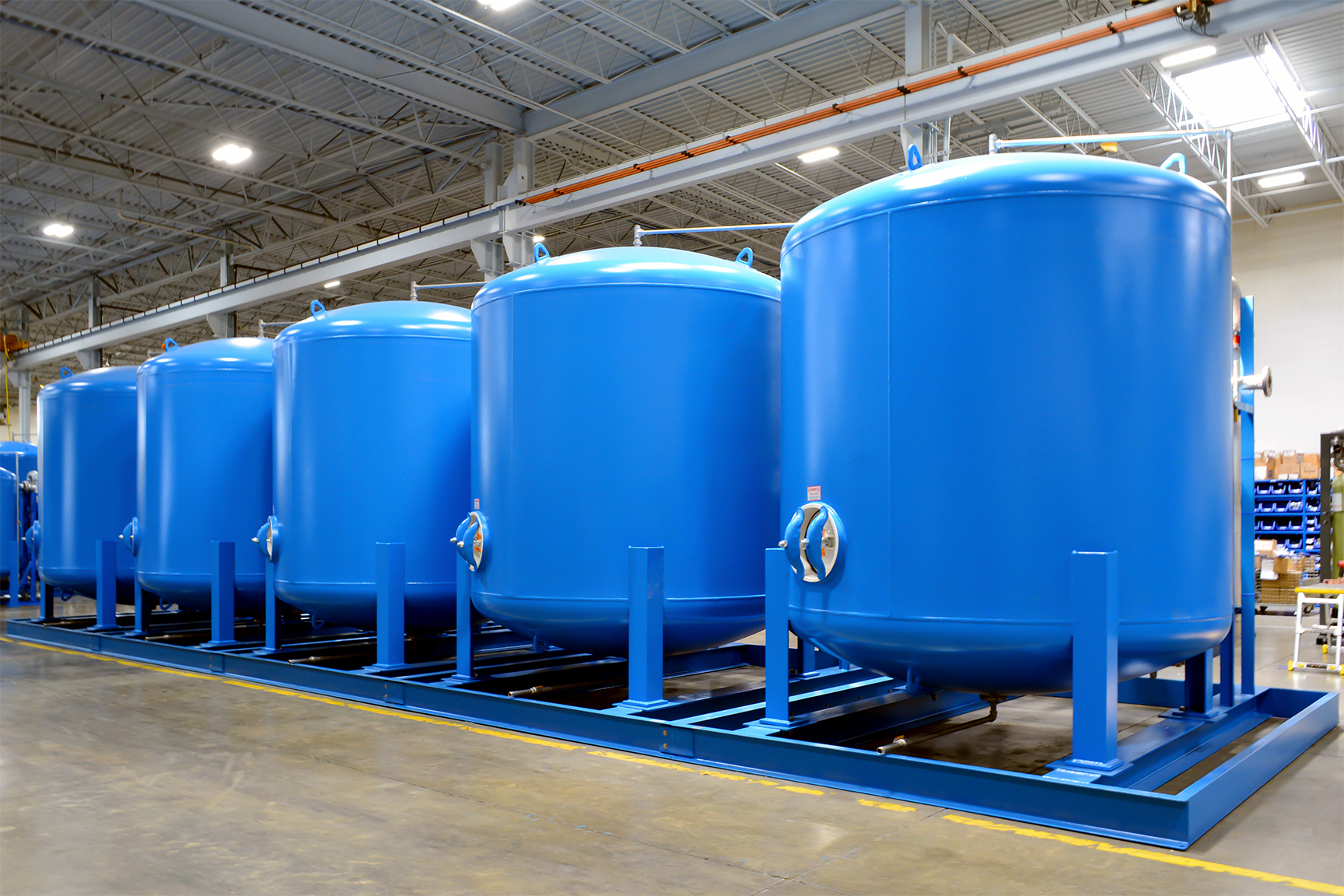

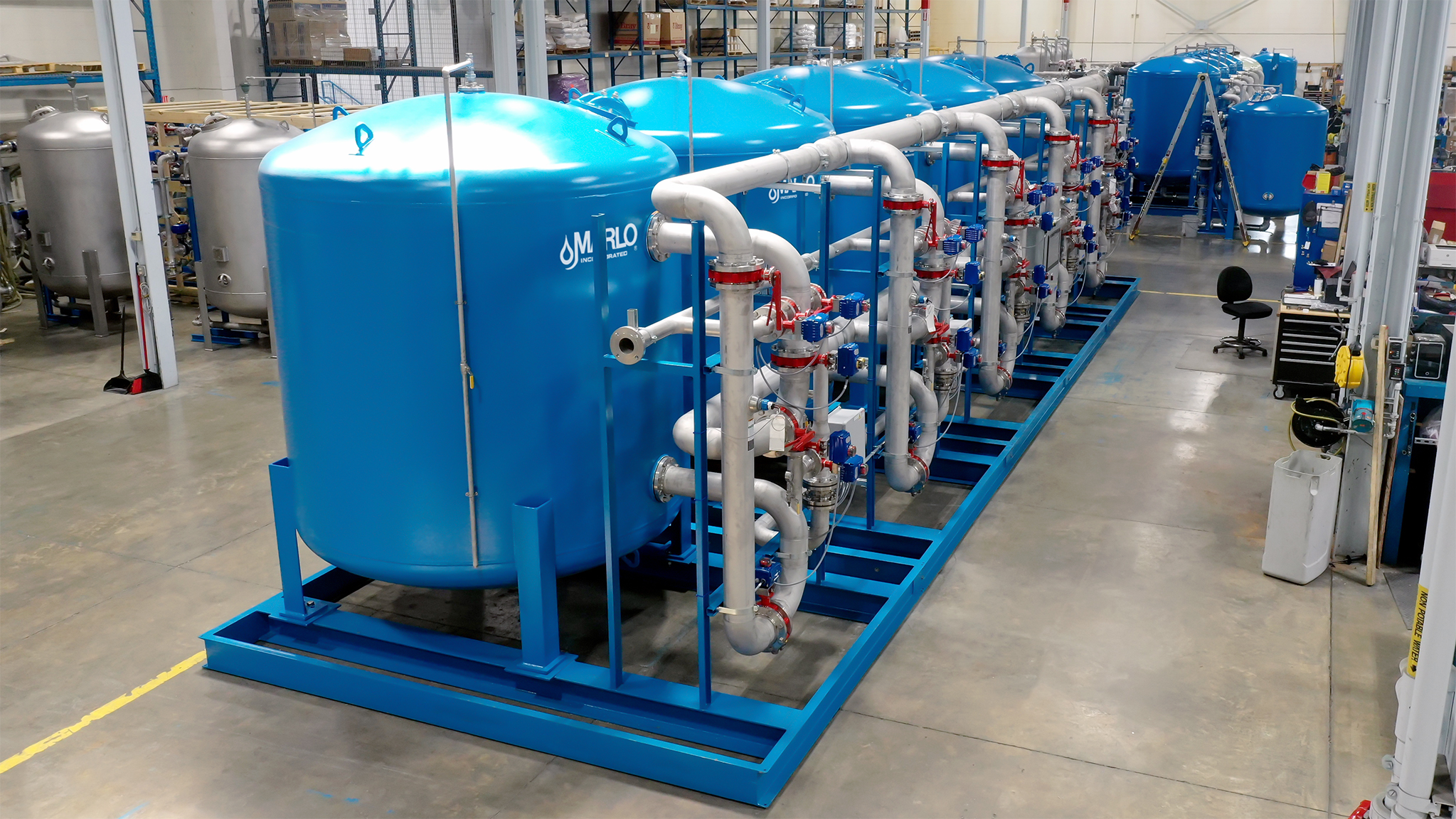

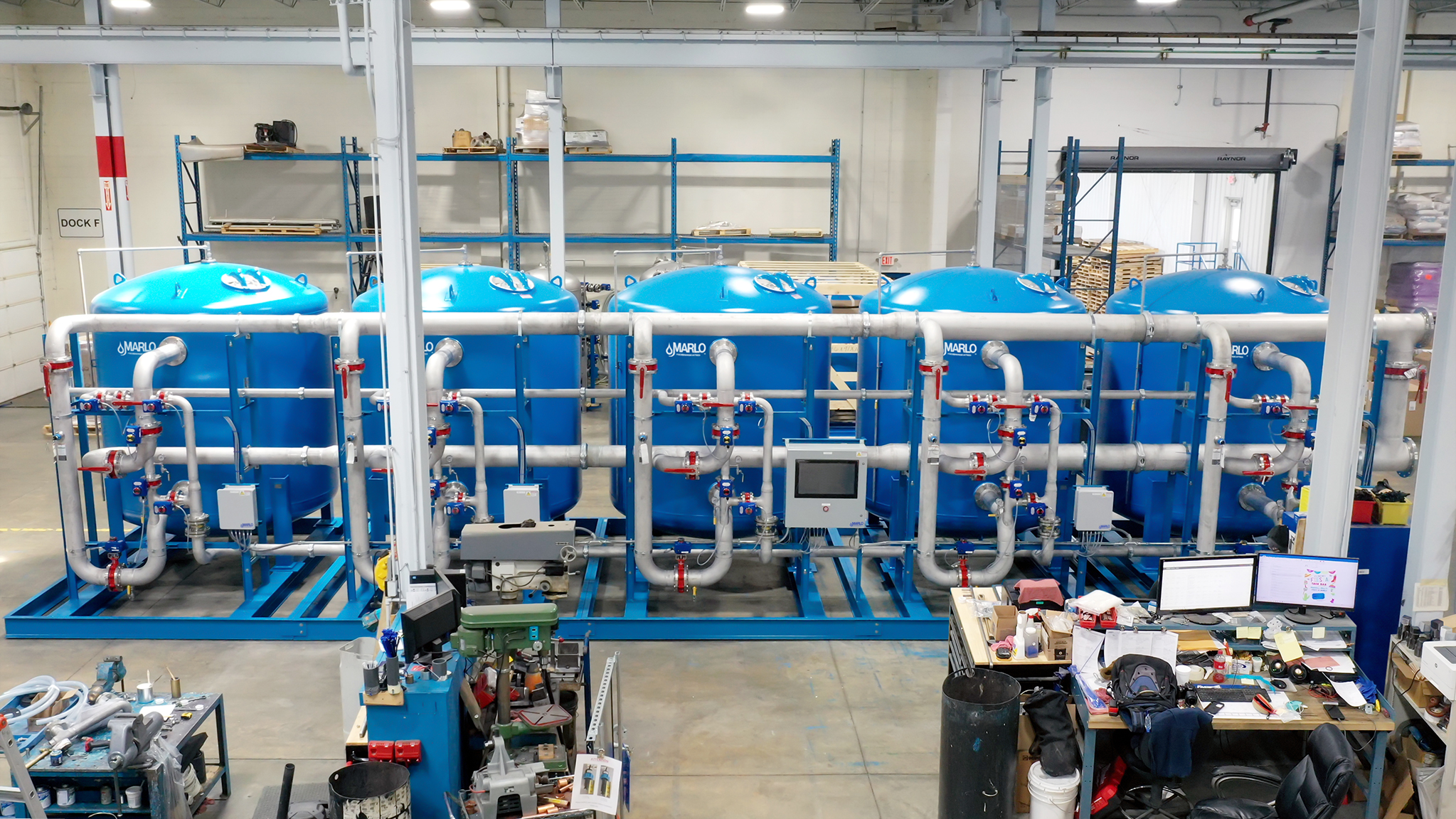

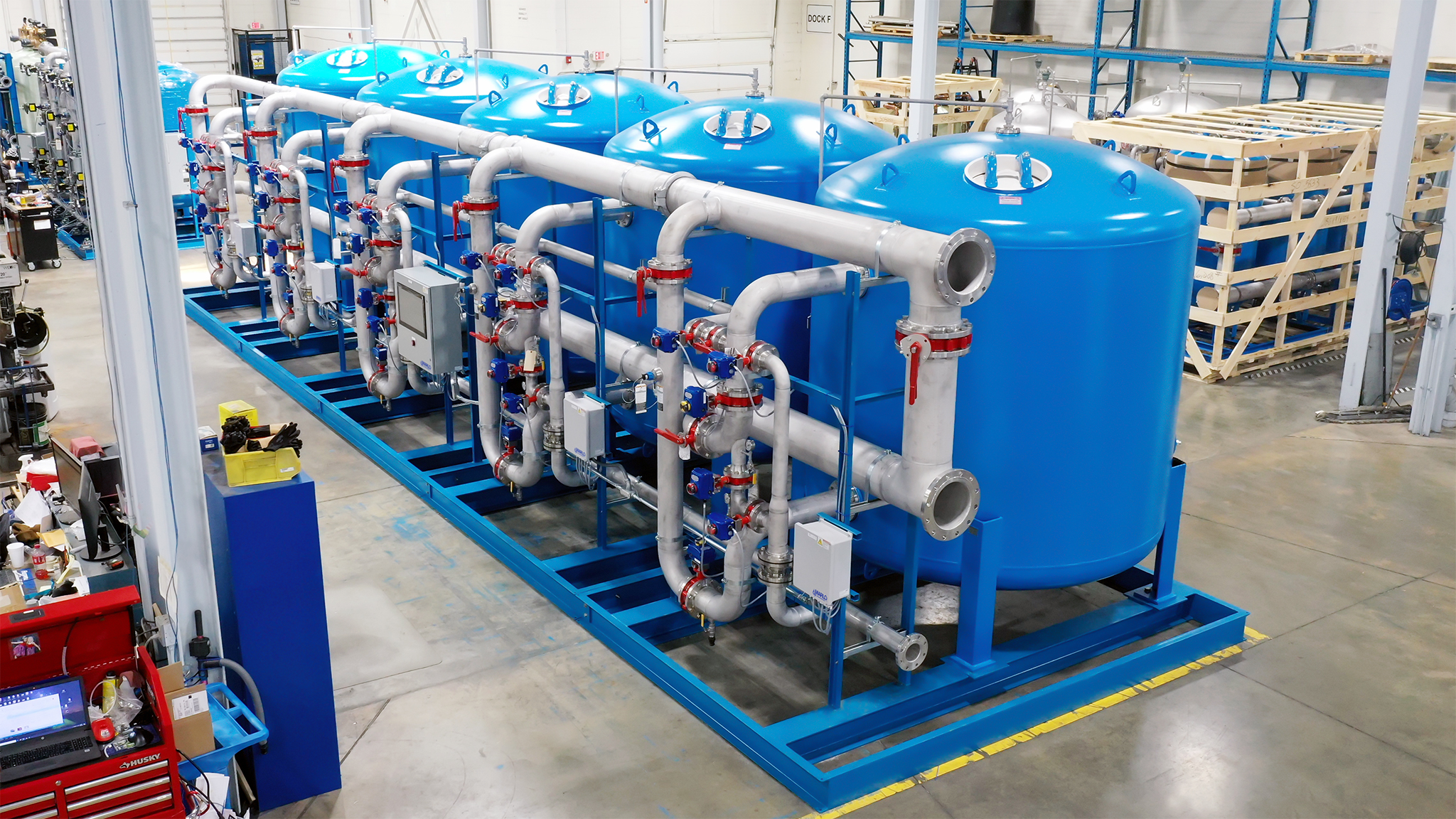

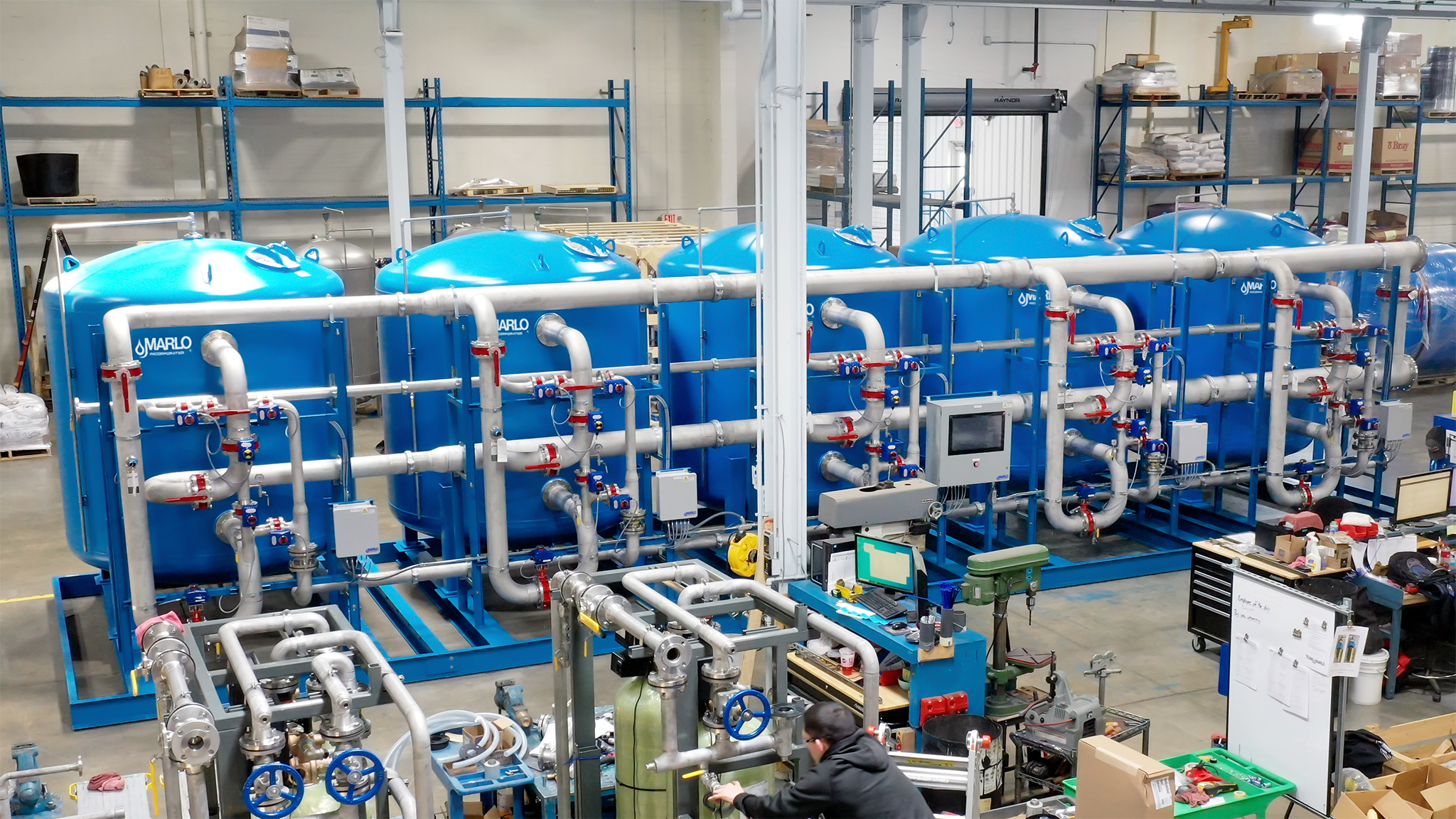

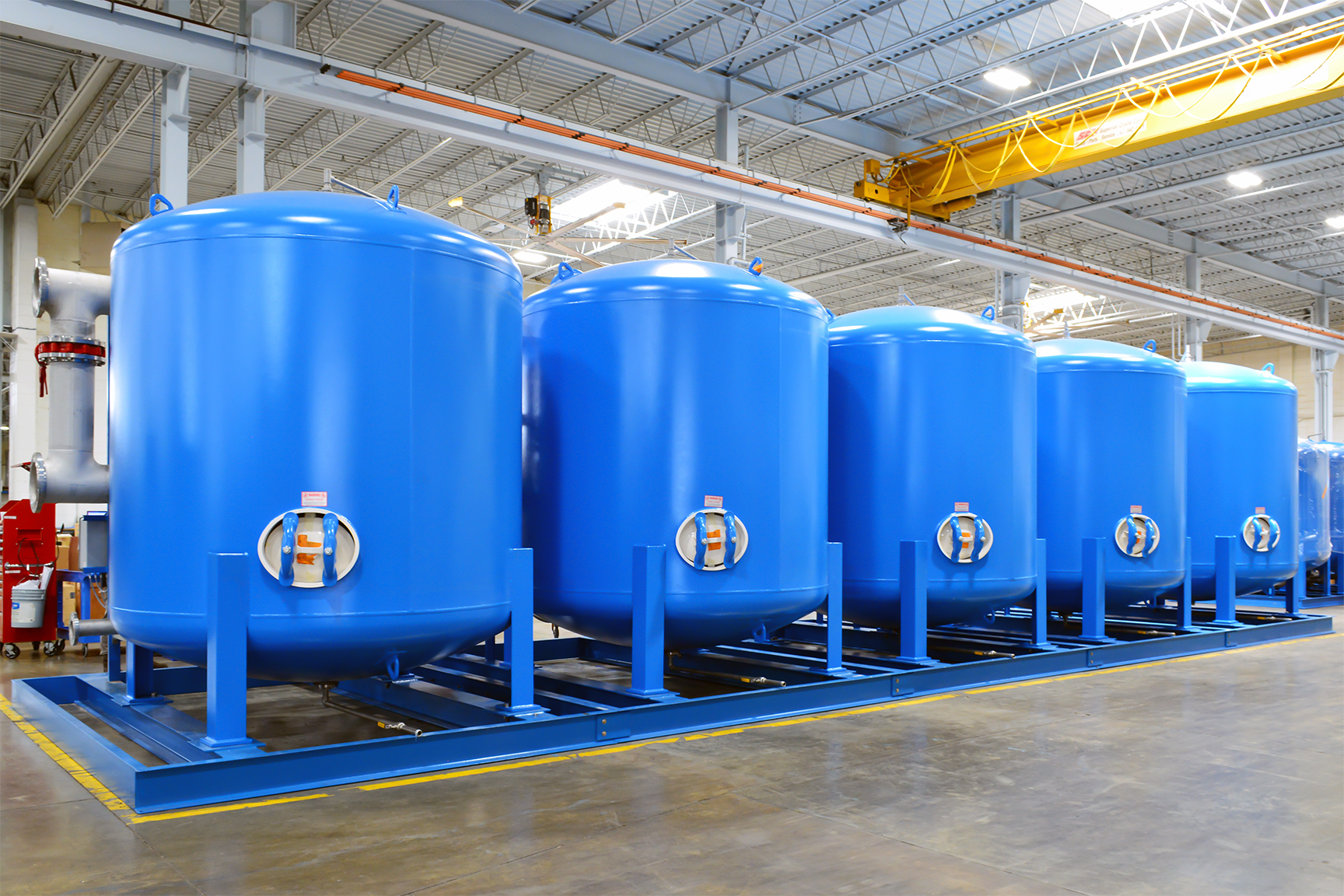

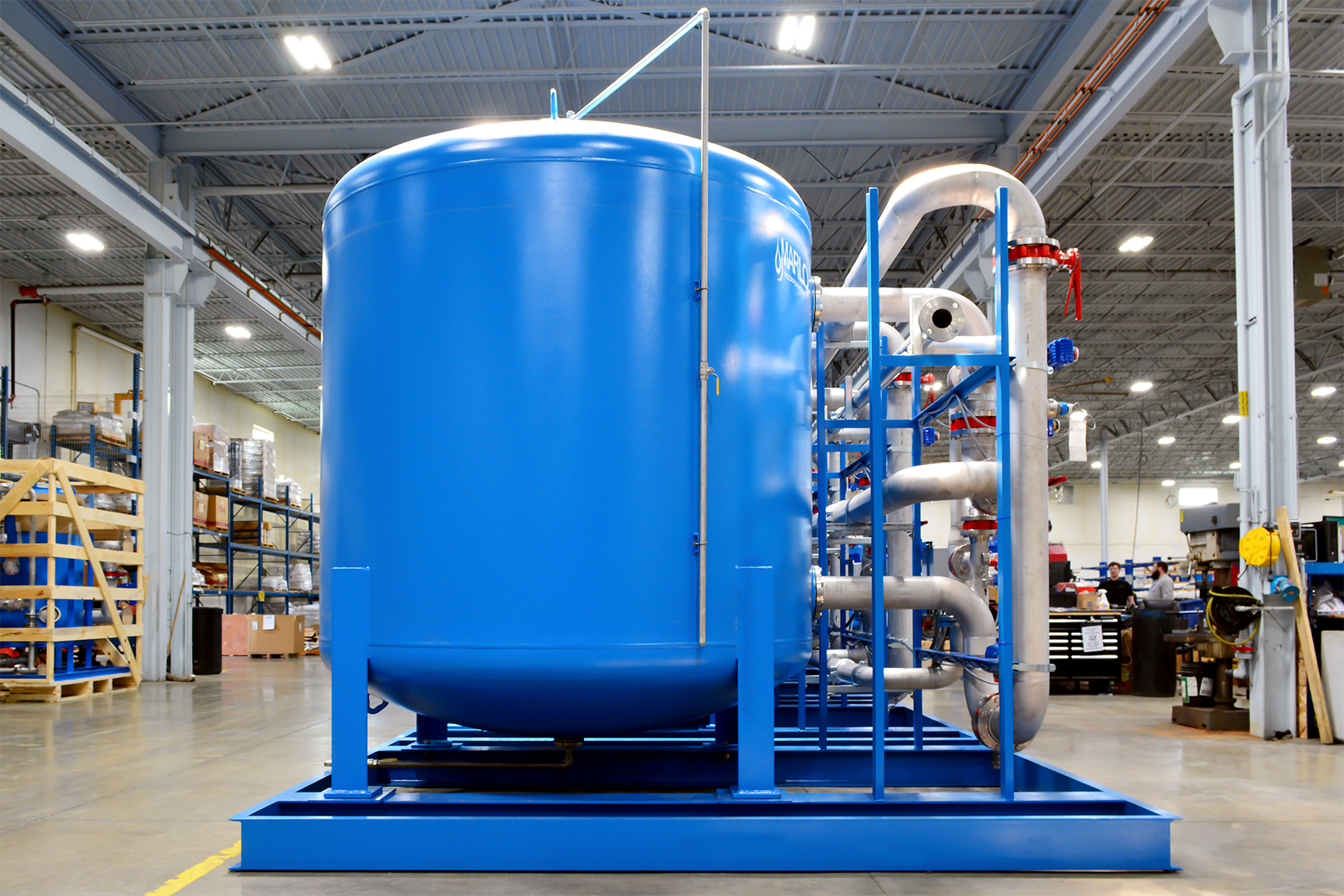

“The Colossus”…Penta-Plex Water Softener Skid for the Central Utility Plant (CUP) at an Agricultural Products Processing Facility. Key features include 96” diameter epoxy-lined, ASME Code Stamped carbon steel pressure vessels, electric-actuated butterfly control valves, welded 304 stainless steel pipework with 10” flanged service headers, and Allen-Bradley CompactLogix PLC control panel with a 24” HMI Display. Progressive flow configuration with 1-5 tanks online depending on actual water demand. Fully skid mounted, pre-piped, pre-wired and factory tested. Bulk brinemaker silo and brine pump skid provided by not shown. Each vessel can be separated into (5) sections to facilitate shipping and installation.
